At t0 a capacitor acts like a wire. The time required for the current flowing in the lr series circuit to reach its maximum steady state value is equivalent to about 5 time constants or 5t.

Learning Goal To Analyze An Rl Circuit To Determine The

Lr Series Circuit Series Inductor Resistor

Ac Circuits

A current through an inductor is always continuous because if it changes abruptly there would have to be an infinite voltage across the inductor.

Current through an inductor after a long time. I1 i2 from d dti1 t 1 l1 e r is t d dti2 t 1 l2 e r is t adding the equations gives d dtis t 1 l1 1 l2 e r is. Is the magnitude of the current constant increasing or decreasing as a function of time. All you must know to calculate the current going through an inductor is l the inductance of the inductor and the integral of the voltage that is across the inductor.

For all practical purposes though we can say that the inductor voltage will eventually reach 0 volts and that the current will eventually equal the maximum of 15 amps. Show calculations and explain answer. After a long time a capacitor acts like a broken wire and inductor acts like a wire.

So the current at t0 is the same as the current. An inductor acts like a broken wire. Again after 5 time constants the circuit is considered to have reached equilibrium or constant state.

Example voltages to enter 5sin60t 10cos110t 15sin120t this inductor current calculator calculates the current flowing through an inductor based on the voltage v across the inductor and the inductance l of the inductor. Any inductor currents i1 i2 with i1 i2 e r are possible at steady state. You could also say that the inductor current lags voltage by 90 degrees.

If you are given initial currents i1 0 i2 0 then current over time results with is. Io is the initial current going through the inductor if there is any. Just as with the rc circuit the inductor voltages approach to 0 volts and the currents approach to 15 amps over time is asymptotic.

What is the magnitude of the current through the inductor the instant after you close the switch. If you wait long enough the current in an rl circuit stops changing. Cannot change the current in an inductor instantaneously.

To calculate the current going through an inductor the formula below is used. The current induces a voltage over the inductor which leads the current by 90 degrees. Now consider the switch s is closed and left closed for a very long time.

How to calculate the current through an inductor. This time constant t is measured by t lr in seconds where r is the value of the resistor in ohms and l is the value of the inductor in henries.

The Diagram Shows Three Circuits With Identical Batteries

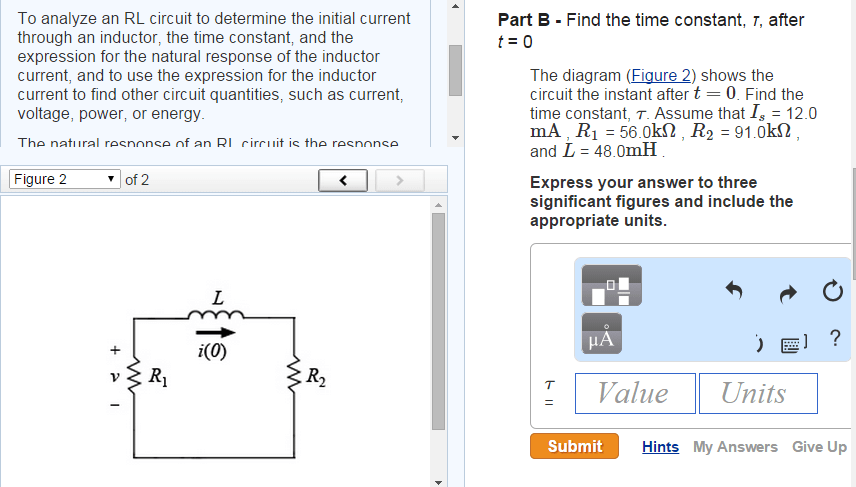

Consider The Circuit Shown In A Find The Current Through The Battery A Long Time After The Switch S Is Closed B Suppose The Switc Is Again Opened At T 0 What Is The Time Cosstant Of The
